Capture all Instances of a Data Element

Randy Sussner
Mar 11, 2022 8:03:42 AM

In working in the capture space a similar use case often comes up – capture all instances of [insert the data element name here] from the document. For example, I want all phone numbers, regardless of location in the document, and regardless of the format of the document. ABBYY FlexiCapture is very good at creating solutions for well formatted, i.e. predictable, documents and capturing data in these documents. But sometimes the format of the document is not known in advance of it entering the system. In this case, we are still interested in capturing the data element (or elements) from the OCRed text and assigning them as properties. The solution can then use this captured data in a content management system as searchable metadata as well as use it as a lookup parameter in internal systems to capture additional data.

ABBYY FlexiLayout is used to create a document definition that supports semi-structured and unstructured documents. Capturing all the data elements that occur in the document can be done in a few relatively easy steps

  • Create a FlexiLayout with search elements defined to locate all occurrences of the data element
  • Refine the FlexiLayout to use a regular expression to identify all data elements
    • Refining the search in this manner increases the accuracy in capturing the desired results
  • Create a document definition based on the FlexiLayout
  • Start capturing data!


Create a FlexiLayout

The first step is to create a FlexiLayout and provide a sample document to match against. For this exercise, we’ll be using a simple email that contains a phone number in the text as well as multiple phone numbers in the footer.


Now lets see the following elements in FlexiLayout

  • Repeating group – as we want to capture all the phone numbers in the document
  • Character string – data element that captures the phone number values
    • Specify a simple regular expression for phone number (note there are multiple ways a phone number can be represented by a regular expression)

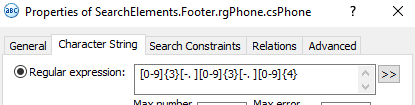

    • FlexiLayout_Regex
  • Add a block to capture the data
    • This is how the extracted data elements are defined as data fields in the FlexiCapture document definition
    • Make sure to check ‘Has repeating instances’
    • Assigned the block to the phone number character string

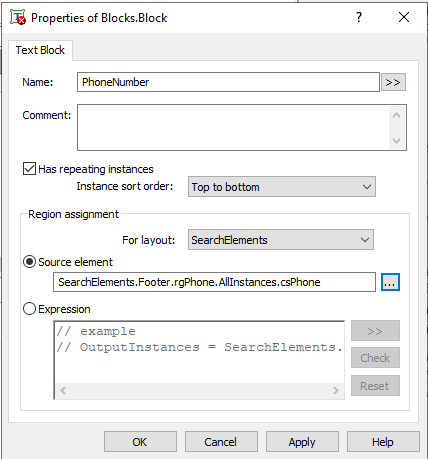

    • FlexiLayout_BlockProperties

Overall the FlexiLayout structure should look as follows


Export the FlexiLayout so we can create a document definition in FlexiCapture based on this layout


FlexiCapture Document Definition

Create a new document definition based on the FlexiLayout created in the previous step

  • Document definition type: Semi-structured or unstructured documents (FL)
  • Specify a test image
  • Specify the FlexiLayout created in the previous step

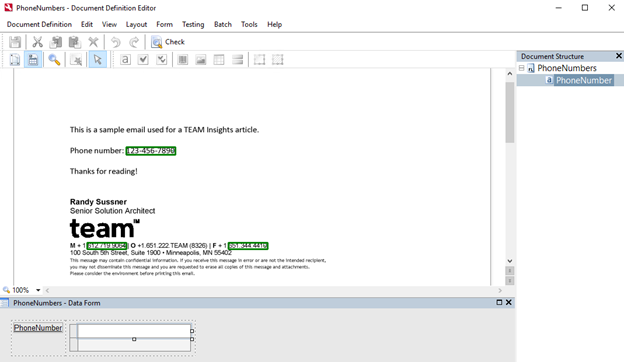

When created, you can see the data element, PhoneNumber in our case, is created as a multi-entry field

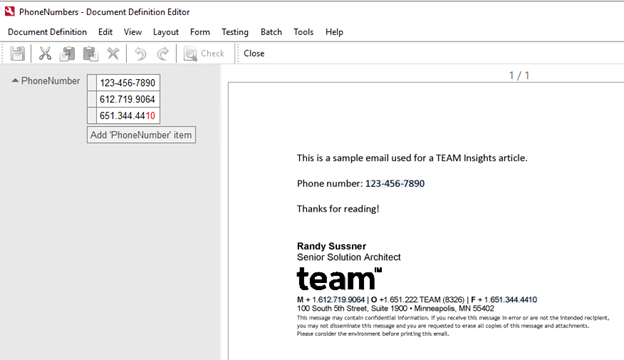

The final step is to test the document definition. This can be done directly in the document definition editor by selecting Testing à Run Test. You can see from the test below that FlexiCapture found three instances of phone number in the test image. Note, there is one phone number that was not captured as the phone number contains letters (TEAM). This could be remedied by altering the regular expression in FlexiLayout.



FlexiLayout can be used to extract any number of data elements from a document. Namely where a field may be represented by a regular expression. It can capture all the values from the text and assign these to a repeating group block. Finally with a document definition in FlexiCapture incorporates the FlexiLayout, it can be used to produce not only an OCRed version of the document, but all the instances of the data element captured.
